Modules
Structure of a module
The following code demonstrates the typical strcuture of a module, which contains regular variables, input variables and output variables.
template<typename TDataType>
class SummationDensity : public ComputeModule
{
DECLARE_CLASS_1(SummationDensity, TDataType)
public:
typedef typename TDataType::Real Real;
typedef typename TDataType::Coord Coord;
SummationDensity();
~SummationDensity() override {};
void compute() override;
protected:
void calculateScalingFactor();
void compute(DeviceArray<Real>& rho);
void compute(
DeviceArray<Real>& rho,
DeviceArray<Coord>& pos,
NeighborList<int>& neighbors,
Real smoothingLength,
Real mass);
public:
///Define intrinsic fields
DEF_EMPTY_VAR(RestDensity, Real, "Rest Density");
DEF_EMPTY_VAR(Mass, Real, "Particle mass, note that this module only support a constant mass for all particles.");
DEF_EMPTY_VAR(SmoothingLength, Real, "Indicating the smoothing length");
DEF_EMPTY_VAR(SamplingDistance, Real, "Indicating the initial sampling distance");
///Define input fields
/**
* @brief Particle positions
*/
DEF_EMPTY_IN_ARRAY(Position, Coord, DeviceType::GPU, "Particle position");
/**
* @brief Neighboring particles
*
*/
DEF_EMPTY_IN_NEIGHBOR_LIST(NeighborIndex, int, "Neighboring particles' ids");
///Define output fields
/**
* @brief Particle densities
*/
DEF_EMPTY_OUT_ARRAY(Density, Real, DeviceType::GPU, "Particle position");
private:
///Define other class members
};
In the Qt-based GUI, the above module appears like

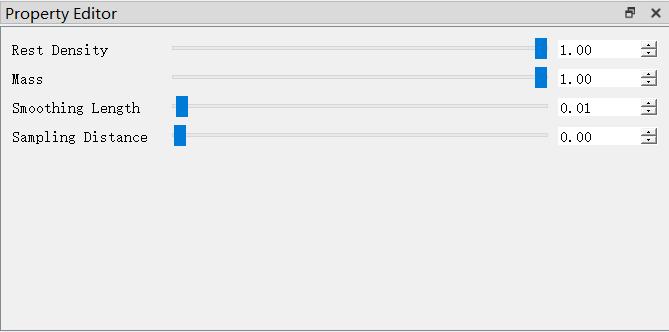

Besides, all regular variables will be shown in the property editor
Intrinsic fields
All intrinsic field names are started with an prefix var, e.g., this->varRestDensity().
If a intrinsic field is defined, it can be used by the module without explicitly initializing its value.
To declare an empty field of real type, use the following formulation
DEF_EMPTY_VAR(RestDensity, Real, "Rest Density");
Input fields
All input field names are started with an prefix in, e.g., this->inPosition().
Input fields of a module are usually empty. Therefore, to execuate a module, its input fields should be explicitly specified.
To set up an input field, the most efficienty way is by connecting an output field to an input field, e.g.,
this->outPosition().connect(m_densitySum->inPosition());
Output fields
All output field names are started with an prefix out, e.g., this->outPosition().
The values of output fields are computed from input fields. As long as either the intrinsic fields all input fields are changed, the output fields should be updated again.
